Model 3 – Foton G7 Monitoring Ambulance
130–140 km/h
Battery
12V, 100Ah
Top Speed
120–130 HP
Max Power Output
Advanced Emergency Care on Wheels
France AJ Holding presents the Model 3 – Foton G7 Monitoring Ambulance, a state-of-the-art mobile medical unit designed to meet the demands of emergency response and patient monitoring. Built on the reliable and spacious Foton G7 chassis, this ambulance is tailored for efficient intervention, safe patient transport, and real-time monitoring during critical situations. With its high-roof body, robust diesel engine, and fully customized interior layout, the Model 3 Monitoring Ambulance is engineered for hospitals, emergency services, disaster response, and healthcare institutions seeking a dependable, high-performance solution.
Key Features
Real-Time Monitoring Equipment
Equipped with multiparameter patient monitor, defibrillator, oxygen system, and emergency medical kit.
Spacious High-Roof Cabin
Allows medical staff to work comfortably in a standing position.
Customizable Interior Layout
Includes stretcher platform, medical storage, and technician seat with full safety harness.
Reinforced Safety Design
Built with high-strength steel and anti-collision beams for enhanced protection.
Built to International Ambulance Standards
Complies with ISO, CE, and local health ministry regulations.
Multiple Conversion Options Available
Tailored configurations based on client country regulations and usage.
Galleries
Medical Equipment – Standard Configuration
The Model 3 – Foton G7 Monitoring Ambulance is fully equipped to handle critical medical emergencies with efficiency and reliability. Every element is carefully designed to support patient care and medical staff performance in mobile environments.
Body structure
- Steel-reinforced frame structure design, safe and reliable.

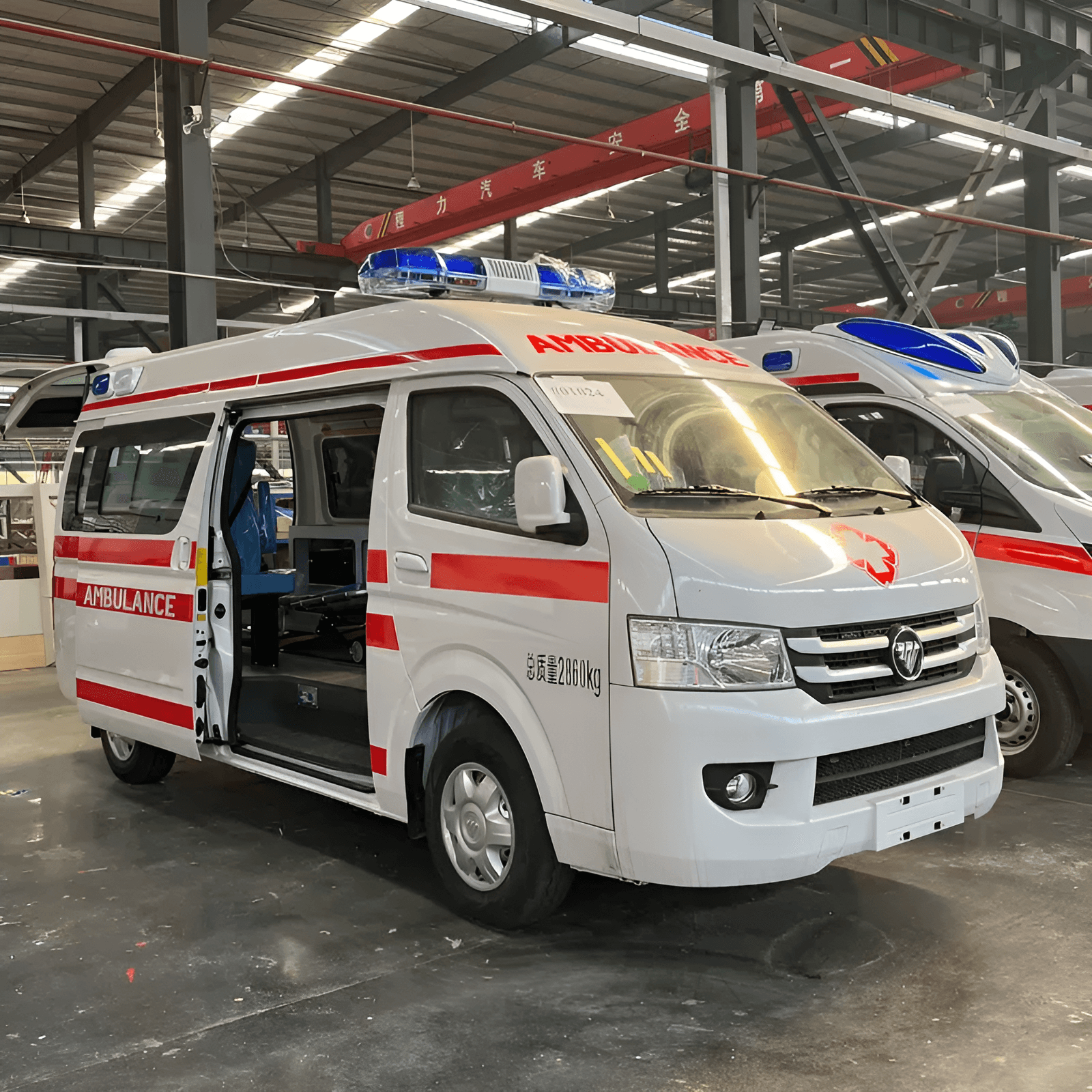

- Sliding door on the right side and double tailgate for easy stretcher loading.
- Large opening width for doctor and patient access.
Vehicle appearance

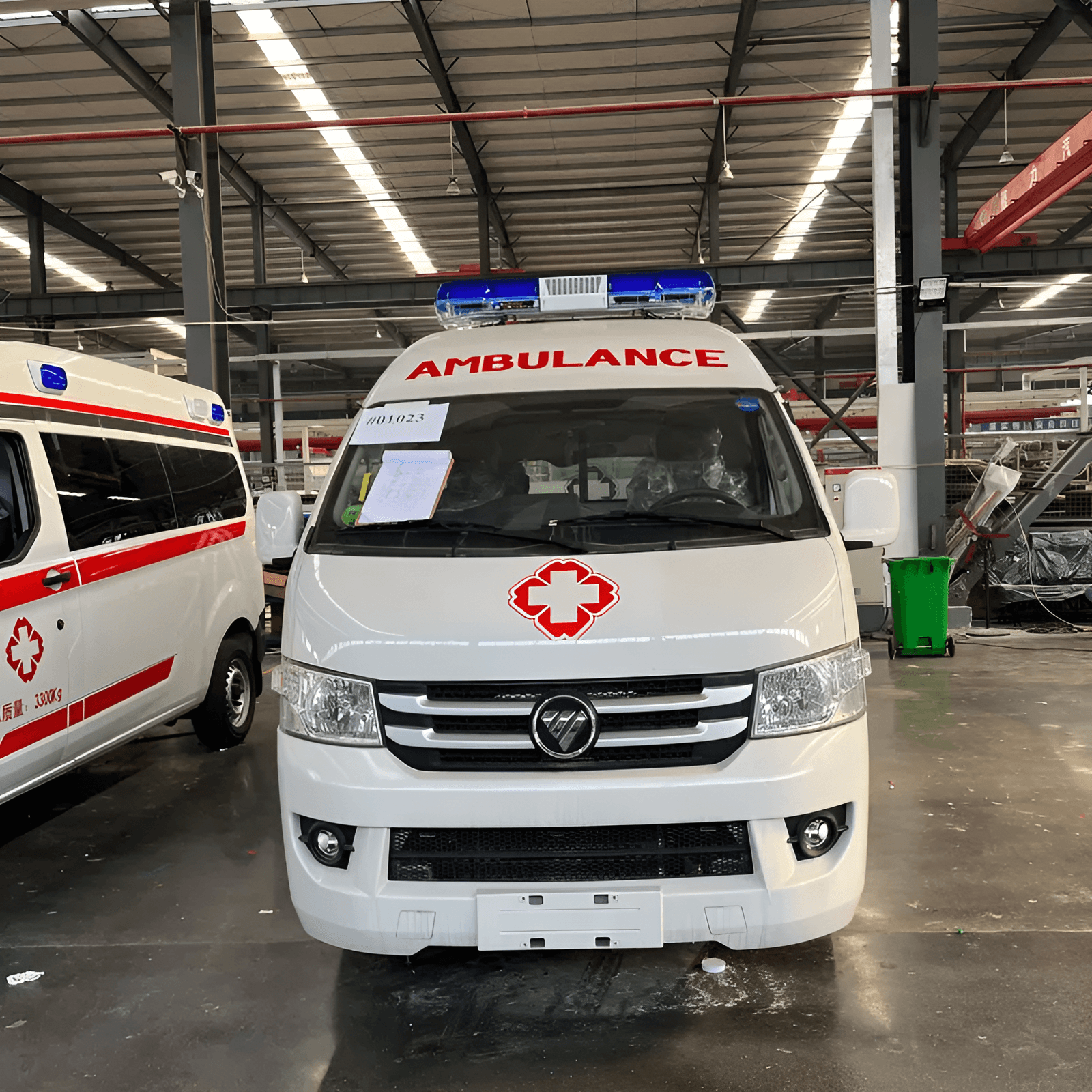

- White body with red cross logo on all sides for visibility and warning.
- Medical cabin glass with 2/3 frosted film for patient privacy.
Warning lamps
- Top-mounted I-shaped integrated warning light.
- 100W horn power.
- Blue and white flashing lights on both sides and rear.
Ambulance system
- Automatic loading stretcher with aluminum alloy frame and adjustable backrest.
- Stretcher platform made from durable aluminum alloy.
- Aluminum guide-rail infusion frame with folding hooks.
Medical oxygen control system
- Two 10L oxygen cylinders with regulators, terminals, respirator interface, and humidifiers for controlled, moist oxygen delivery.
Floodlight
- Four 12V cabin lights and two infusion spotlights for clear visibility.
Inverter
- 1000W sine wave inverter providing 220V/12V dual output for onboard equipment.
Disinfection lamp
- 1 automatic UV disinfection lamp to maintain hygiene and safety.
Air conditioning
- Rear air conditioner and heater with independent temperature control.
Ventilator
- 12V multifunction ventilator ensures efficient air circulation in the cabin.
Disinfection lamp
- 1 automatic UV disinfection lamp for health and safety.
Middle partition assembly
- Partition between driver and cabin with glass observation window for communication.
Ventilator
- 12V multifunction ventilator installed on roof for airflow.
Cabinet assembly
- Long cabinet with drawers and compartments.
- Oxygen cylinder cabinet for 2 cylinders, plus wall cabinet with sliding doors.
- Seat cabinet with cushion, backrest, and seat belt.

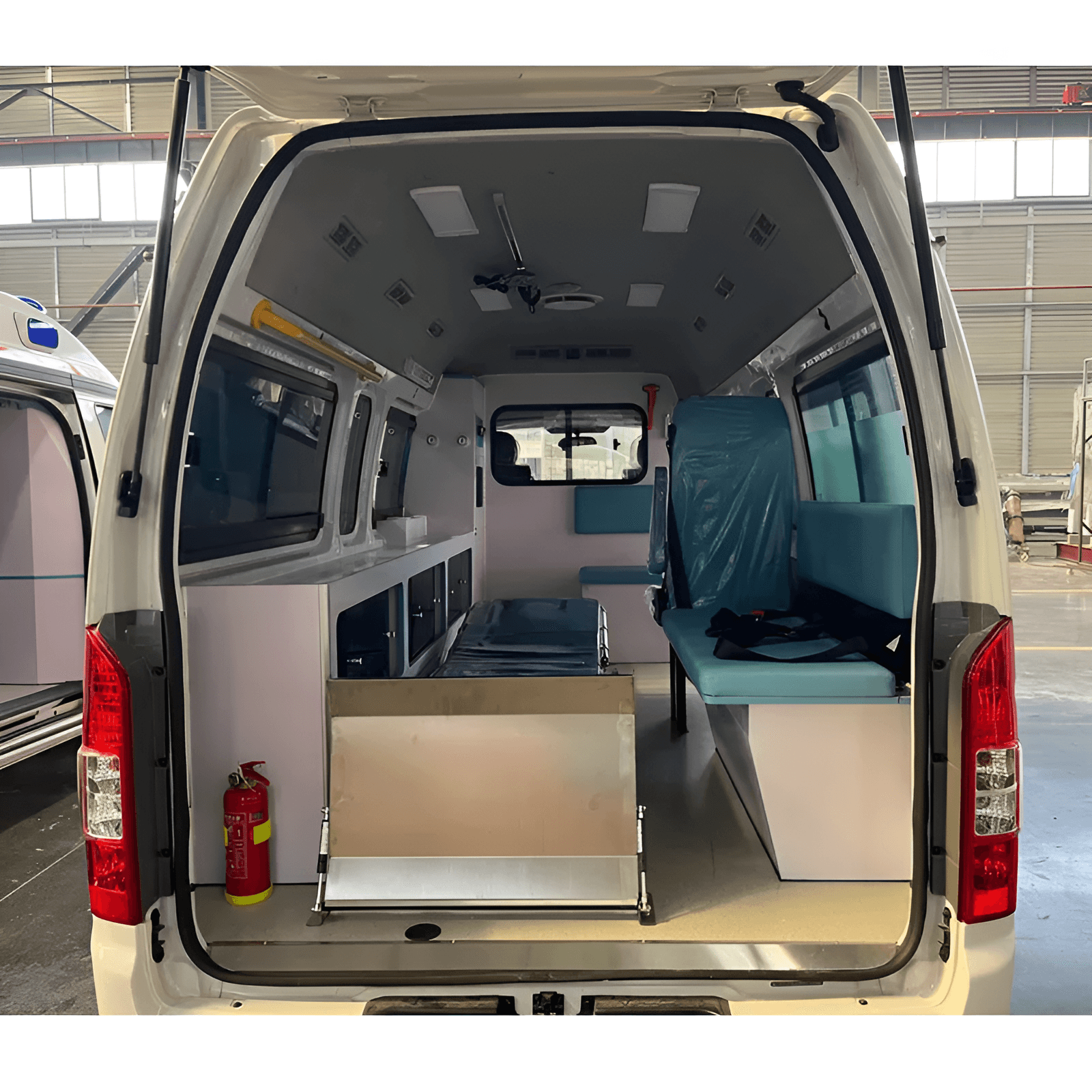

Medical cabin interior
- Made of lightweight, waterproof, antibacterial materials.
- Floor made of medical leather – anti-slip, waterproof, easy to clean.
Side sliding door window
- Flat sliding glass window.
Walkie-talkie
- Hands-free microphones installed for front and rear communication.
Fire extinguisher
- 1kg dry powder fire extinguisher installed in medical cabin.
Dirt bucket
- Foot-operated covered dirt bucket.
Safety handrail
- Long strip handrail installed on the cabin ceiling.
Emergency hammer
- Emergency hammer installed in the medical cabin.
